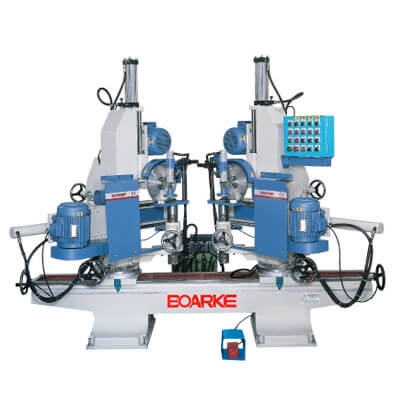

45 Degree Double End Miter Saw

This machine is suitable to make tenons in offices, conference tables, octagonal tables and many kinds of dining chairs & backs.
Hydraulic clamping and hydraulic driving have strong processing.
The tracks are accurate linear guide-ways which are stable without shaking. Also have low wear-resistance and low malfunction.

MODEL	PC-B435	PC-B436
Max.length of cut	1800mm	2400mm
Min.length of cut	300mm	300mm
Max.width of cut	200mm	200mm
Max.thickness of cut	80mm	80mm
Sawblade dia.(optional)	12"-14"	12"-14"
Sawblade motor & speed	3HP，3300-3600RPM，50Hz/60Hz	3HP，3300-3600RPM，50Hz/60Hz
Spindle motor	5HP	5HP
Spindle speed	7600RPM	7600RPM
Sawblade speed	4000RPM	4000RPM
Column swivel angle	0°-45°	0°-45°
Hydraulic drive motor	2HPx1	2HPx1
Sawblade stroke	250mm	250mm
Packing dimensions(rail dismantled)	3000×1150×2100mm	3680×1150×2100mm
Net weight	1150kg	1180kg
Gross weight	1280kg	1320kg

45° DOUBLE END MITER SAW WITH MOULDING MACHINE
