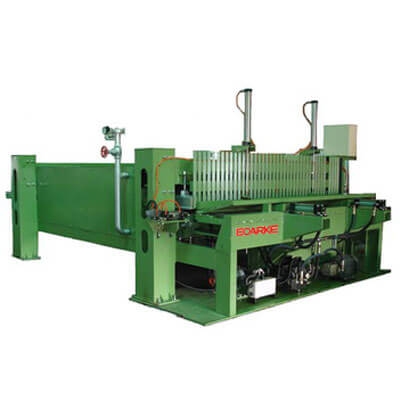

8 SEMI AUTOMATIC BLOCK BOARD COMPOSER

PC-J701

PC-J701

PC-J701
PC-J701
Inquiry
FEATURES:
ModelPC-J701
Length of Product 1,880~2,514mm (6’,7’,8,)
Strip Thickness 8~25mm
Strip Width 35~50mm
Motor for Oil Pump 10HP×4P
Motor for Circular Saw 5HP×2P
Power 11.25 KW
Steam Pressure 3~7 kgs/cm2
Compressed Air 5 kgs/cm2
Max.Pushing Speed 45 strokes/min
Hydraulic Control System 1 set
Pneumatic Control System 1 set
Electric Control System 1 set
Upper Steam Headers 130×130×4,000mm×17pcs
Lower Steam Headers 130×130×3,715mm×17pcs
Consumption 70 kgs/hr
Machine Size 5,420×3,260×2,050mm
Net Weight Approx 7,000 kgs
Gross Weight Approx 7,500 kgs
