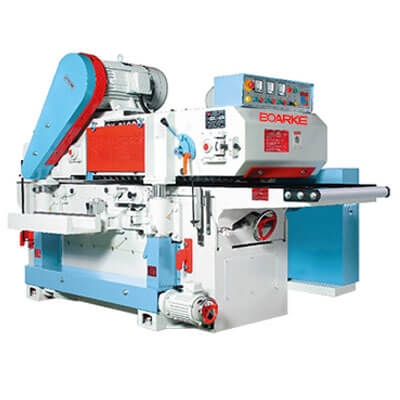

PC-C425
Product Description

proimages/pro/Woodworking_Machine/C425a.jpg

Precise Elevation
Patented lifting column system (synchronized transmission) guarantees accurate positioning accuracy.
proimages/pro/Woodworking_Machine/C425b.jpg

Flexible Transmission Shaft

Patented universal drive transmission for feed groups and infeed carpet, the transmission system is directly by flexible shafts for high accuracy and full power transmission.

proimages/pro/Woodworking_Machine/C425c.jpg
Cast Table with Heavy Chrome Plating

The working table is constructed of the highest grades of cast iron, heating treated and precision ground, then table surface is hard chrome plated and polished, it provides incredible wear resistance.

proimages/pro/Woodworking_Machine/C425d.jpg
Spike Conveyor for Feeding
Infeed conveyor (spiked) allow precision jointing accuracy especially on warped or twisted lumber.

Inquiry
FEATURES:
  • Rugged cast iron ad plate steel fabrication provide long term dependability and low maintenance.
  • Infeed conveyor/carpet(spiked) allow precision jointing accuracy especially on warped or twisted lumber.
  • Computerized top cutterhead positioner is accurate ±0.05mm ensuring quick and accurate setup.
  • Cutterhead tooling technology guarantees low noise, reduced power requirements, minimal operations cost, and repetitive finish on the most difficult hardwoods.

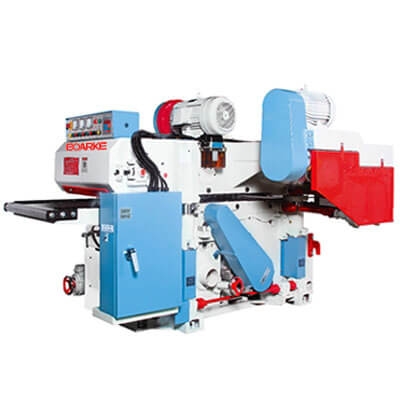

  • Feed speeds up to 8-25M/min. allow the EXTEND LIGHT double surfacer to meet high production demands.PC-C426 Feed speed 10-40/60M/min
  • Increased horsepower series surfacers provide greater capacity for stock removal while keeping finish at optimum levels.
  • Patented lifting column system (synchronized transmission) guarantees repetitive setup and long-term dependability.
MODELPC-C425PC-C426
Max.working width 18" (457mm) 24" (610mm)
Max working thickness 5" (125mm) 8" (200mm)
Min.working thickness 1/4" (6mm) 1/4" (6mm)
Min.working lengh 12" (300mm) 12" (300mm)
Cutterhead Diameter Ø125 Ø135
Composition of knves High-speed steel High-speed steel
Carbonizes the tungsten steel (optional) Carbonizes the tungsten steel (optional)
Knift stye 6 x 38 x 450 mm 6 x 38 x 610 mm
30 x 12 x 2.5 mm (optional) 30 x 12 x 2.5 mm (optional)
Cutterhead speed 4600 RPM 4600 RPM
Feeding speed 6-20 m/min  6-25 m/min
Upper cutterhead motor 20 HP / 25 HP 25 HP / 30 HP
Bottom cutterhead motor 15 HP / 20 HP 20 HP / 25 HP
Feed drive motor 5 HP + 7 1/2 HP 5 HP + 7 1/2 HP
Elevation drive motor 1 HP 1 HP
Machine dimensions L2520 x W1400 x H1600 mm L2830 x W1700 x H1700 mm
Packing dimension L2650 x W1550 x H1800 mm L2950 x W1850 x H1830 mm
N.W/G.W 3000 kgs / 3350 kgs 4000 kgs / 4400 kgs
Dust requirement 3600 CFM 4200 CFM
