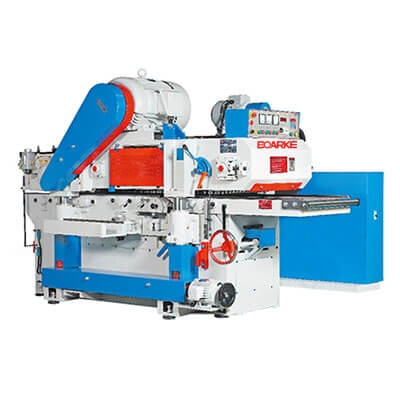

PC-C427
Product Description

proimages/pro/Woodworking_Machine/C427a.jpg
Controls Cabinet
All electrical controls are neatly positioned in a remote dust proof cabinet and adopt highest technology available in all electrical components. Y Delta start up allows soft start of all cutterhead and feed motors.
proimages/pro/Woodworking_Machine/C427b.jpg

Rear Emergency Stop Control
Additional emergency switch at outfeed/rear of planer provides quick access to shut machine down. Emergency mushroom button is also standard on front control panel.

proimages/pro/Woodworking_Machine/C427c.jpg

Cardan Shaft Transmission System

The force cardan shaft transmission, the synchronism is good, dynamic output 100% efficiency transmissions. (patented article)


proimages/pro/Woodworking_Machine/C427d.jpg

Lubricating Arrangement

Central lubricating arrangement, lubrication covering all head pulleys and around clamp.

Inquiry
FEATURES:
  • Rugged cast iron ad plate steel fabrication provide long term dependability and low maintenance.
  • Infeed conveyor/carpet(spiked) allow precision jointing accuracy especially on warped or twisted lumber.
  • Computerized top cutterhead positioner is accurate ±0.05mm ensuring quick and accurate setup.
  • Cutterhead tooling technology guarantees low noise, reduced power requirements, minimal operations cost, and repetitive finish on the most difficult hardwoods.
  • Feed speeds up to 8-25M/min. allow the EXTEND LIGHT double surfacer to meet high production demands.PC-C426 Feed speed 10-40/60M/min
  • Increased horsepower series surfacers provide greater capacity for stock removal while keeping finish at optimum levels.
  • Patented lifting column system (synchronized transmission) guarantees repetitive setup and long-term dependability.

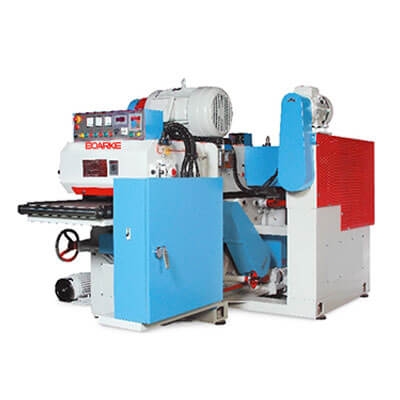

MODELPC-C427PC-C428
Max.working width 39" (1000mm) 52" (1320mm)
Max working thickness 6" (150mm) 6" (150mm)
Min.working thickness 3/8" (9mm) 3/8" (9mm)
Min.working lengh 15" (400mm) 15" (400mm)
Cutterhead Diameter Ø175 mm Ø175 mm
Composition of knves Carbonizes the tungsten steel  Carbonizes the tungsten steel
Knift stye 30 x 12 x 2.5 mm 30 x 12 x 2.5 mm
Cutterhead speed 4200 RPM 4200 RPM
Feeding speed 6-25 m/min  6-25 m/min
(Standard) standard standard
Upper cutterhead motor 50 HP / HD Type 60,75 HP 60 HP / HD Type 75 HP
Bottom cutterhead motor 40 HP / HD Type 50,60 HP 50 HP / HD Type 60 HP
Feed drive motor 10 HP + 15 HP  10 HP + 15 HP
Elevation drive motor 2 HP 2 HP
Machine dimensions L3050 x W2150 x H1700 mm L3050 x W2470 x H1700 mm
Packing dimension L3150 x W2300 x H1830 mm L3150 x W2680 x H1830 mm
N.W 7600 kgs 8400 kgs
G.W 7900 kgs 8800 kgs
Digital control for setting working pieces thickness standard standard
CFM Dust requirement 5200 CFM 5800 CFM
