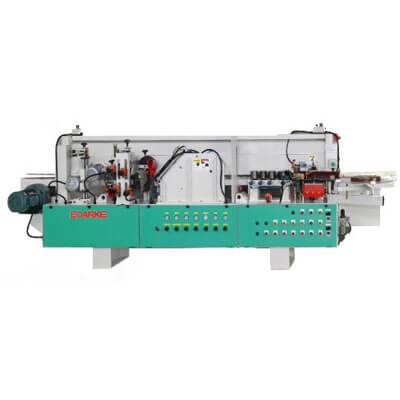

PC-I201 Automatic Edge Banding Machine | Boarke (Po Chiao) Woodworking Machinery Builder

MODEL	PC-I201	PC-I211	PC-I221	PC-I231
Workingpiece Length	160-up
Workingpiece Width	65-up
Workingpiece Thickness	10-60 m/m
Edging Thickness	0.4-6 m/m
Feed Speed	6-25 M/min
Air Pressure Required	6kg/cm2
Feed Power	3HP	3HP	3HP	5HP
Total Horsepower	9hp(7kw)	10.5hp(8kw)	11.5hp(8.5)	15hp(11kw)
Net weight	1230kgs	1390kgs	1570kgs	1700kgs
Gross weight	1530kgs	1740kgs	1970kgs	2150kgs
Maching dimensions(m/m)	3700×1800×1450	4220×1800×1450	4650×1800×1450	5200×1800×1450
Paking dimensions(m/m)	3570×920×1500	4100×920×1500	4520×920×18500	5150×920×1500

AUTOMATIC EDGE BANDING MACHINE
