AUTOMATIC PLANER

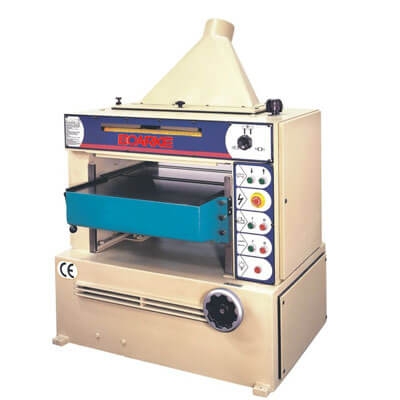

PC-C231 Heavy Duty Wood Planer

PC-C231 Heavy Duty Wood Planer

PC-C231 Heavy Duty Wood Planer
PC-C231
Product Description
proimages/pro/Woodworking_Machine/C231a.jpg
proimages/pro/Woodworking_Machine/C231b.jpg
VARIABLE FEED SPEED
proimages/pro/Woodworking_Machine/C231c.jpg
MICROMETRICAL ADJUSTMENT FOR TABLE ELEVATION
Inquiry
FEATURES:
  • Ruggedly constructed cast-iron machine frame features maximum rigidity and stability.
  • Powered table rollers.
  • Anti-Kickback design for safety.
  • Cast-iron table is precision ground.
  • Flat cutterhead is standard.
  • 6'' dust hood outlet.
  • Cast-iron base.
MODELPC-C231
Toble area (L*W*H) 540*902mm(21¼ * 35½)in
Max. planing width 508mm(20)in
Max. planing thickness 230mm(9)in
Min. planing thickness 3mm(1/8)in
Max. cutting power 8mm(5/16)in
Min. planing length 254mm(10)in
Cutterhead dia. 117(4 5/8)in
Cutterhead speed x 5000(4)RPM
Feeding speed 6~12m/min
Table vertical motor 7½HP
N.W. 730kgs
G.W. 830kgs
Packing size (L*W*H) 1093*1016*1170mm (43*40*46)in
Motor 45.8 cuft
Table vertical motor ½HP
Dust outlet 5in
Packing size (L*W*H) 1HP
