PC-H: Spindle Shaper Making Machine

AUTOMATIC SHAPING & PROFILE MACHINE

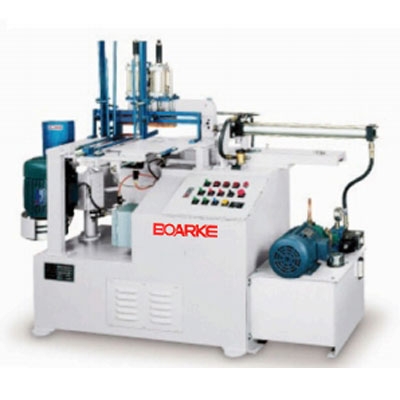

PC-H321 Automatic Profile Shaping Machine

PC-H321 Automatic Profile Shaping Machine

PC-H321 Automatic Profile Shaping Machine
PC-H321
Inquiry
FEATURES:
MODLEPC-H321
Maximum length of cut 300mm
Range of workpiece width    20-150mm
Range of workpiece thickness    6-60mm
Production rate 5-9pcs/min.
Spindle speed 9000rpm
Spindle diameter Ø1''(25.4mm)
Spindle motor Standard 3HP×2 (2HP optional)
Hydraulic pump motor 2HP
Machine size(L×W×H) 1900×1070×1450mm
Packing size(L×W×H) 1950×1145×1500mm
Net weight 650kgs
Gross weight 800kgs
