PC-A: Band Saw Machine

Bevel Head Band Sawmill with Digital Readout

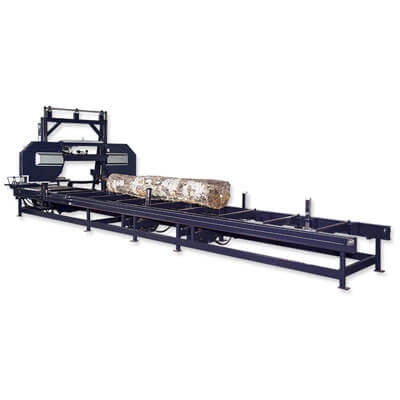

PC-A912 Bevel Head Band Sawmill Machine

PC-A912 Bevel Head Band Sawmill Machine

PC-A912 Bevel Head Band Sawmill Machine
PC-A912
Product Description
proimages/pro/Woodworking_Machine/A912a.jpg
proimages/pro/Woodworking_Machine/A912b.jpg

Driven by hydraulic motor，Robustly constructed for moving heavy logs.


proimages/pro/Woodworking_Machine/A912c.jpg
Auto out-feed table for saving labor cost and increase production efficiency.
proimages/pro/Woodworking_Machine/A912d.jpg
Infeed power roller can move logs forward and backward.
Inquiry
FEATURES:
  • This horizontal sawmill operates with 9 m long (can be longer), the max. diameter could be 110 cm, it produces edged boards and unedged boards, allow to operate with more than 3 cubic meters of round timber per hour with 50 mm of boards thickness.
MODELPC-A912
 Log width  1000mm
Log length  7200mm
Log bed length 9000mm
Min. cutting thickness 10mm
Min. cutting length 2000mm
Max. cutting log diameter 1100mm
Saw blade elevation distance 25~950mm
The final / bottom piece of board thickness 25mm
Shortest length of working piece 1300mm
Main motor drive                        40HP
Hydraulic system 7-1/2HP
Horizontal feed is driven by hydraulic motor
Feed speed. 0-30M/min
Band saw wheel 42” diameter x 4” width
Band saw blade size  4” x 26 feet long
　 With 2 sets x LOG TURNERS
　 With 1 set x LOG CLAMP
　 With 1 set x LOG LIFTER
　  With 5 sets x LOG POSTS
　 With Digital Readout for cutting sizes
　 Central control panel
　 Auto. lifting mechanism by electrical motor to elevate saw blade up and down
　 Horizontal feed is driven by hydraulic motor
　 Vertical feed is driven by gear box and liner bearing
