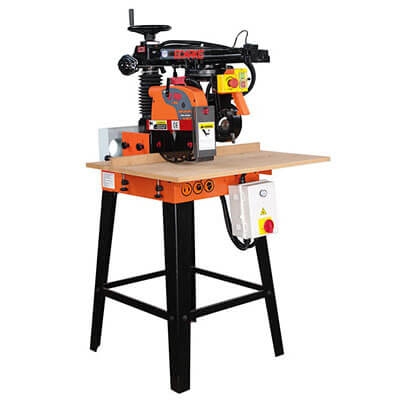

Radial Arm Wood Saw | BOARKE - Industrial Radial Arm Saw Manufacturers

MODEL	PC-B633
Motor horsepower	3ψ4.5HP
Motor horsepower	2ψ2.5HP
Motor speed	50HZ 2900 r.p.m.
Motor speed	60HZ 3400 r.p.m.
Bearing track	Linear bearing/8pcs
Spindle diameter	ψ1”(25.4mm)
Saw blade diameter	14”(355mm)
Rotary head	0-180°
Head tilt	(0°,22°,45°,90°)
The maximum width of the trimming	1100mm
The maximum capacity of crosscutting	620mm
Table area ( length * width )	600*1100mm
Mechanical Dimensions	112011001170mm
Packing size	1130940790mm
Net / Gross	200/240kgs
The outer diameter of the saw blade	12”	14”	Especially motor [Psi] 30 mm

Cantilever cross universal circular sawing machine
