PC-D: Woodworking Drilling Machine

DOUBLE END BORING M/C.(V&H)

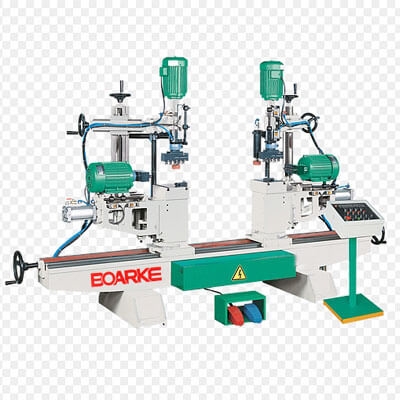

PC-D221 Double End Boring

PC-D221 Double End Boring

PC-D221 Double End Boring
PC-D221
Inquiry
FEATURES:
  • The machine base is manufactured from high quality cast iron. (FC 25-30)
  • Suitable for vertical and horizontal operations.
  • 2 boring heads are used for vertical & horizontal drilling & boring.
  • Spindle accommodates a single tool chuck or multiple-tool boring head.
  • 2 boring heads are used on 360-degree rotation operation for angular drilling.
  • Pneumatic operation.
MODELPC-D221
Spindel motor(horizontal) 2HP×2
Spindel motor(vertical) 1HP×2
Spindel speed 60HZ-35000R.P.M.
Head in line max. distance between drills 2600mm
Head in line min. distance between drills 280mm
Head at parallel max. distance between drills 2100mm
Head at parallel min. distance between drills 300mm
Max.boring depth 80mm
Vertical spindle travel 80mm
Vertical boring stroke travel 60mm
Horizontal spindle travel 100mm
Clamp cylinder 2
Max. spindle to table distance 60mm
Air Pressure (Horizonfal) 5.6kg/cm2
Machine size 3100×750×1600mm
Packing size 3200×830×1780mm
N.W./G.W. 800kg/1050kg
