DOUBLE END MULTIPLE SPINDLE BORING MACHINE

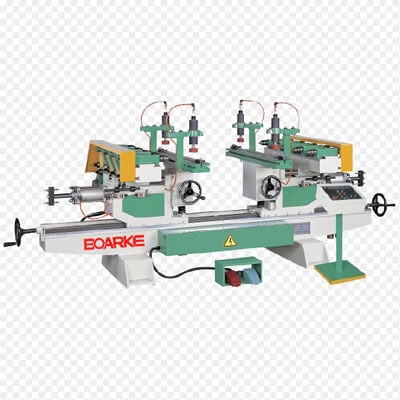

PC-D201 Double End Multiple Spindle Boring Machine

PC-D201 Double End Multiple Spindle Boring Machine

PC-D201 Double End Multiple Spindle Boring Machine
PC-D201
Inquiry
FEATURES:
  • The machine base is manufactured from high quality cast iron. (FC 25-30)
  • Double ends are equipped with 1-6 spindles, permitting flexible boring applications.
  • Spindles both ends can be moved to suit various hole positions.
  • Spindle accommodates a single tool chuck or multiple-tool boring head (Optional).
  • Pneumatic operation.
MODELPC-D201
Spindle motor 2HP×2
Spindle speed 50HZ-3700R.P.M. 60HZ-4200R.P.M.
Number of spindle 10
Number of idler wheel 10
Hold down clamp 4
Max. boring depth 90mm
Min. boring depth 50mm
Spindle stroke 100mm
Max.working length 1600mm
Min.working length 250mm
Machine size 3100×1100×1250
Packing size 2820×1180×1750
N.W. 1000KG
 G.W. 1120KG
