DOUBLE END TENONER MACHINE

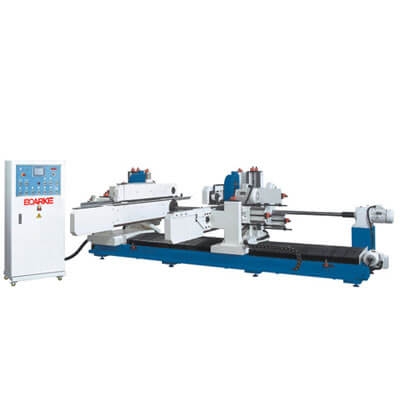

PC-F104 Double End Tenoner Machine

PC-F104 Double End Tenoner Machine

PC-F104 Double End Tenoner Machine
PC-F104
Product Description

Touch Screen:

Width is set through the tough screen combined with a PLC to ensure high positioning accuracy.

Feed Chaintrack:

Equipped with needle bearings to increase wear-resistance. Choice of rubber or phenol surfaces.

Precision Linear Guideway:

The movable side of the DET is mounted on precision linear guideways to ensure accuracy.

Scoring Saw System:

Capable of swivelling to angles of up to ±90°.

Optional saw jumping function.

Main Saw System:

Capable of swivelling to angles of up to ±90°.

Second Moulding System:

Capable of swiveling to angles of up to ±90°.

Powered by high frequency motors.

Inquiry
FEATURES:
MODELPC-F104PC-F105PC-F106
Max. working width         2600 (3000/3600)mm 2000mm 1300mm
Min. working width                            210mm 210mm 210mm
Max. working thickness 120mm 120mm 120mm
Motor horse power 2(3/5)hp 2(3/5)hp 2(3/5)hp
Feed speed 5-25m/min 5-25m/min 5-25m/min
Distance between  dogs 400(300/200)mm 400(300/200)mm 400(300/200)mm
Motor horse power 1hp 1hp 1hp
Feed speed 2m/min 2m/min 2m/min
Motor horse power 2(3/5/7.5)hp 2(3/5/7.5)hp 2(3/5/7.5)hp
Spindle speed 3450rpm(60Hz) 3450rpm(60Hz) 3450rpm(60Hz)
Spindle diameter 25.4(30)mm 25.4(30)mm 25.4(30)mm
Sawblade diameter 120-305mm 120-305mm 120-305mm
Motor horse power 5(7.5/10)hp 5(7.5/10)hp 5(7.5/10)hp
Spindle speed 3450rpm(60Hz) 3450rpm(60Hz) 3450rpm(60Hz)
Spindle diameter 25.4(30/40)mm 25.4(30/40)mm 25.4(30/40)mm
Sawblade diameter 205-355mm 205-355mm 205-355mm
Motor horse power 5(7.5/10)hp 5(7.5/10)hp 5(7.5/10)hp
Spindle speed 3000/8000(6000)rpm 3000/8000(6000)rpm 3000/8000(6000)rpm
Spindle diameter 40mm 40mm 40mm
Cutter diameter 180-210(120-160)mm 180-210(120-160)mm 180-210(120-160)mm
N.W. 4350kg 3900kg 3500kg
G.W. 5000kg 4750kg 4200kg
Machine size (mm) 4560x2360x1470mm 3960x3260x1470mm 3360x3260x1470mm
Packing size (mm) 4760x2280x1750mm 4160x2280x1750mm 3560x2280x1750mm
