PC-B: Sawing Machine

DOUBLE END WITH TOP &BOTTOM SAW WITH MOULDING HEAD MACHINE

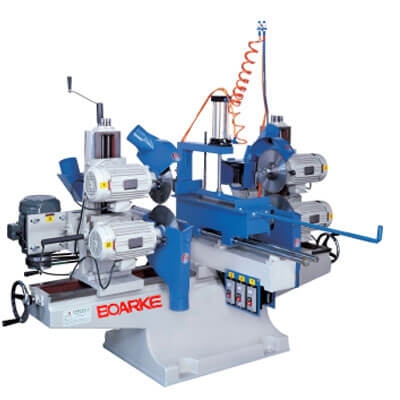

PC-B421 Double End with Top & Bottom Saw with Moulding Head Machine

PC-B421 Double End with Top & Bottom Saw with Moulding Head Machine

PC-B421 Double End with Top & Bottom Saw with Moulding Head Machine
PC-B411
Inquiry
FEATURES:
  • The series used by super hardness steel of shaftbearing which high wear-resistance. The rail movement with linear slid way rail of round beads easy to operate.
  • Suitable for precision cutting.
MODELPC-B411、 PC-B412、 PC-B413
Number of rails 1
Width of cut 280-1200MM
length of cut 540MM
Sawblade dia.(optional) 10”-12”(Ø25.4MM)
Sawblade motor 2HPX2，(2HP×4)
Molding spindle dia. 25.4or30MM
Length of cutter 80or100MM
Molding spindle motor and speed 3HPX2, 7000RPM
Sawblade speed 3300-3600RPM，50HZ/60HZ
Sawblaade and molding spindle tilt 360°
Packing dimensions(rail dismantled) 2200X800X1500MM
Net weight 580kg/650kg/680kg
Gross weight 650kg/720kg/750kg
