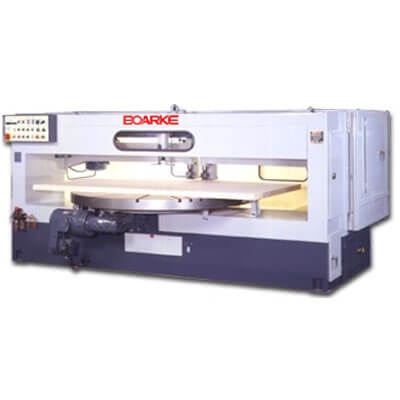

Heavy Duty Automatic Copyshapers

MODEL	PC-H212	PC-H213
Range of cutting diameter	28" - 120"	24" - 100"
Maximum rectangular cutting (2:1)	107.4" x 53.7"	89.2" x 44.6"
Table diameter	82"	72"
Table rotation speed (Infinitely variable)	0.5 - 3RPM	0.5 - 3RPM
Spindle speed	9000RPM	9000RPM
Spindle diameter	1",30mm,11/4"	1",30MM 11/4"
(interchangeable)	(One dia funished)	(One dia funished)
Cutter size	100mm	100mm
Follower roller diameter	100mm	100mm
Table drive motor	3HP x 1	3HP x 1
Spindle drive motor	15HP x 2	10HP x 2
Net weight	5100kgs	4000kgs
Gross weight	6150kgs	4900kgs
Packing size	156" x 91" x 81"	130" x 90" x 81"
