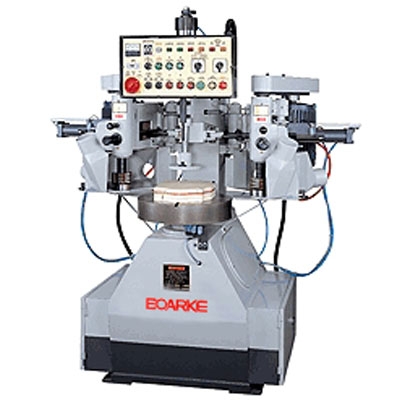

Heavy Duty Automatic Copy Shaper (PC-H221)

MODEL	PC-H221
Range of cutting diameter	4" - 36"
Maximum rectangular cutting (2:1)	32" x 16"
Table diameter	26"
Table rotation speed (Infinitely variable)	1.5 - 4RPM
Spindle speed	8,000 RPM
Spindle diameter	1",30MM 11/4"
(interchangeable)	(One dia funished)
Cutter size	100mm
Follower roller diameter	100mm
Table drive motor	1HP x 1
Spindle drive motor	7 1/2 HP x 2
Net weight	1070 kgs
Gross weight	1390 kgs
Packing size	73" x 64" x 80"

HEAVY DUTY AUTOMATIC COPY SHAPERS
