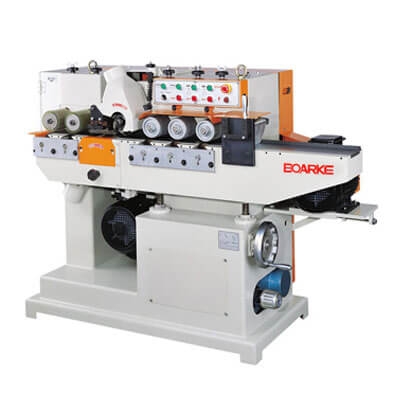

PC-E601
Product Description
proimages/pro/Woodworking_Machine/E601a.jpg
Two spindle suit for smooth dowel cutter fluted dowel cutter and profile cutter...etc
proimages/pro/Woodworking_Machine/E601b.jpg

Variable feed speed change: Range from 4-13m/min


proimages/pro/Woodworking_Machine/E601c.jpg

Safety cover (Optional)

FEATURES:
MODELPC-E601
Range of working diameter Ø2 to Ø30mm
Upper spindle 7 1/2HP
Bottom spindle 7 1/2HP
Feed motor 1HP
Max working width 100mm(4")
Spindle speed 6500 rpm(60Hz)
Feed speed 4-13 m /min
Machine size (L x W x H) 1780x850x1250mm
Machine size (L x W x H) 1900x990x1450mm
Net weight 950kg
Gross weight 1100kg
