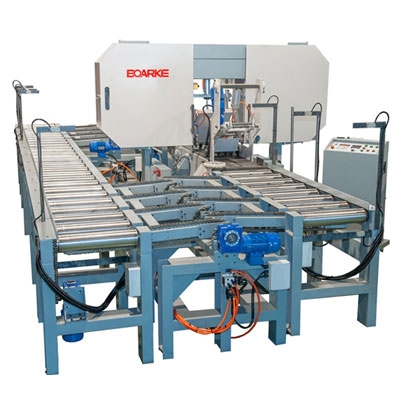

Wood Horizontal Band Saw | BOARKE : Wood Horizontal Bandsaw Machine Company

MODEL	PC-A921
Maximum Cutting Capacity(W X H)	16"x 8 "(400x200 mm)
Distance From Blade To Conveyor	(2~200mm)
Minimum Cut Piece	2 mm
Saw Wheel Diameter	36" (915mm)
Sawblade Length	238 1/2"(6060mm)
Sawblade Width	3" OPTION4" (75mm OPTION 100mm)
Conveyor Width	16"x165-1/2"(400x4200mm)
Feed Speed (Variable)	0~30 m/min
Conveyor Height From Floor	36-1/2"(926mm)
Saw Wheel Motor	25 HP OPTION 30HP,40HP
Blade Lift Motor	1HP
Feeding Motor	3 HP
Dust Hood Outlet Diameter	5"x2

Horizontal Band Saw + Steel Chain
