PC-D: Woodworking Drilling Machine

HORIZONTAL & VERTICAL DOUBLE HEAD BORING MACHONE

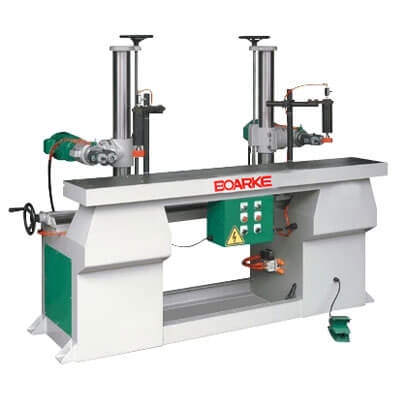

PC-D024 Horizontal & Vertical Double Head Boring Machine

PC-D024 Horizontal & Vertical Double Head Boring Machine

PC-D024 Horizontal & Vertical Double Head Boring Machine
PC-D024
Inquiry
FEATURES:
  • Air control system and air clamp.
  • Suitable for vertical, horizontal and angular boring operations.
  • Both heads can be adjusted in up/ down, right/ left and forward/ backward.
MODELPC-D024
SPINDLE TRAVEL 80mm
MAX.BORING DEPTH 65mm
STANDARD CLAMPING THICKNESS 150mm
SPINDLE VERTICAL SWIVEL 90˚
SPINDLE HORIZNTAL SWIVEL 180˚
WORKING TABLE AREA 300*1800mm
SPINDLE MOTOR 2HP*2
SPINDLE SPEED 50HZ-3000R.P.M. 60HZ-3500R.P.M.
MACHINE SIZE 2020*1000*1730mm
PACKING SIZE 2220*1200*1880mm
N.W. 790kg
G.W. 890kg
