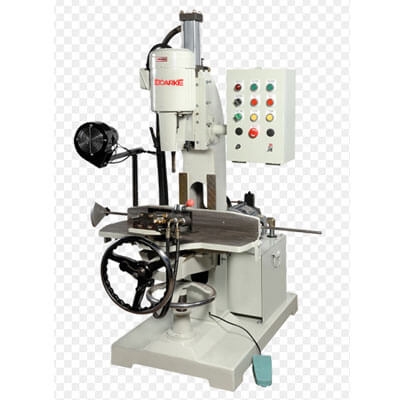

Hydraulic Hollow Chisel Mortiser

MODEL	PC-F604
Chisel Range	1/4" to 1"
Table	14"×27-1/2"
Table Cross Traverse	5"
Table Longitudinal Traverse	18"
Table Vertical Traverse	12"
Head Drive	Hydraulic
Clamp Drive	Hydraulic
Chuck Capacity	1-1/8"
Spindle Speed	2800rpm/50HZ 3400rpm/60HZ
Maximum Stock Width	8"
Maximum Mortising Depth	4"
Head Motor	2HP
Hydraulic Pump Motor	2HP
New Weight	380kg
Gross Weight	460kg
Packing Dimension（L×W×H）	137 × 100 × 185 cm
