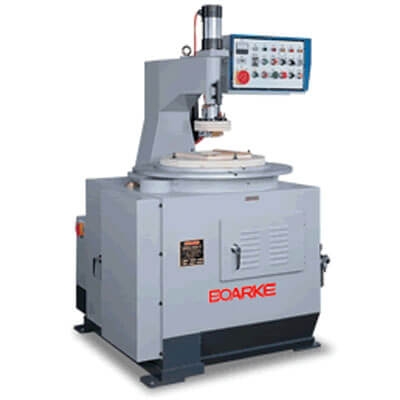

The Best Internal Automatic Copy Shapers- PC-H231

MODEL	PC-H231
Range of cutting diameter	4" - 38"
Maximum rectangular cutting (2:1)	34" x 17"
Table diameter	52"
Table rotation speed (Infinitely variable)	1.5 - 4RPM
Spindle speed	8,000 - 16,000 RPM
Spindle diameter	1",30mm, 11/4"
(interchangeable)	(One dia funished)
Cutter size	100mm
Follower roller diameter	100mm
Table drive motor	2HP x 1
Spindle drive motor	10 HP x 1
Air pressure required	70kg/cm²
Net weight	1880kgs
Gross weight	2080 kgs
Packing size	85" x 66" x 87"

INTEMAL AUTOMATIC COPYSHAPERS
