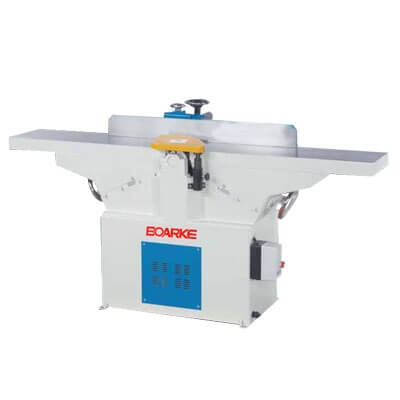

Wood Jointer Machine | BOARKE : Noted Wood Jointer Manufacturers

Straight cutter head is standard. Helical cutter head and quick change cutter head are optional.
Heavy gauge steel metal base assures maximum rigidity and stability.
Magnetic switch control.
Specially designed cutter head guard for safety.
Cutter head features sound reduction design.

MODEL	PC-C101	PC-C102	PC-C103
Table area	305 x 1840mm	305x2000mm	406x2032mm
Spindle speed	5300 rpm	5300 rpm	5300 rpm
Spindle diameter	100 mm	100 mm	100 mm
Cutterhead motor	2 HP（3 HP）	2 HP（3 HP）	3 HP（5 HP）
Straight cutterhead	3	3	3
Helical cutterhead	6 Slots / 78 pcs	6 Slots / 78 pcs	6 Slots / 102 pcs
Straight cutterhead	305 x 30 x 3 mm	305 x 30 x 3 mm	406 x 30 x 3 mm
Helical cutterhead	14 x 14 x 2.0mm	14 x 14 x 2.0mm	14 x 14 x 2.0mm
Fence size	110 x 990 mm	110 x 990 mm	110 x 990 mm
Net weight	330kgs	360kgs	530kgs
Gross weight	410kgs	440kgs	630kgs
Machine dimensions (L x W x H)	184 x 60 x 95 cm	205 x 59 x 95 cm	208 x 69 x 95 cm
Packing sizes (L x W x H)	188 x 59 x 105 cm	210 x 63 x 105 cm	209 x 63 x 105 cm

JOINTER
