CNC-10
Product Description
proimages/pro/CNC_Machining_Center/20-1.jpg
Sample from this machine
FEATURES:

Wood Mill Turn CNC Machine combines features of CNC wood turning machine and CNC wood milling machine. It is a precision tool designed for shaping and crafting wood into various cylindrical or curved profiles. It has a dust-free enclosure design can be easily operated and meets the diverse needs of woodworking industries, offering precision, efficiency, and versatility in crafting wood materials for various applications. The following are features of our wood CNC turning machine and CNC milling machines:


  • 3-axis simultaneous machining for "irregular" shapes.
  • Utilizing large saw blade as main cutting tool for high speed machining.
  • Zero dust emission during machining.
  • Exclusive CAM system integrated on the controller to ease data input.
  • Simplified control platform.

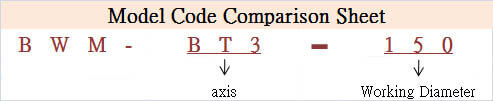

MODELBWM-BT3-150
Working Diameter MAX. 150mm
Workpiece Lenght MAX. 500mm
Working Length 400mm
Rapid speed  X/Y axis 24M/min
Rapid speed  B axis 24M/min
X  axis motor 0.8KW
Y  axis motor 0.8KW
B  axis motor 0.8KW
Spindle motor 2KW
Sawing spindle motor 3KW
