MORTISING MACHINE

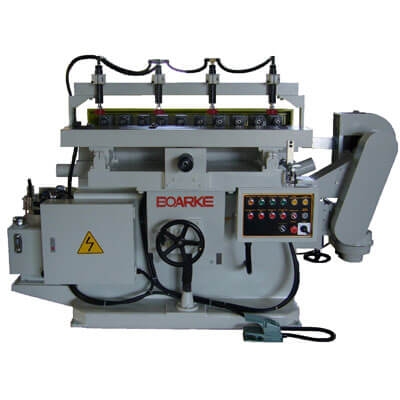

PC-F401 Mortising Machine

PC-F401 Mortising Machine

PC-F401 Mortising Machine
PC-F401
Inquiry
FEATURES:
ModelPC-F401PC-F402
Spindle motor 3HP×2 5HP×2
Shake spindle motor 1HP×1 1HP×1
Hydraulic pump motor 2HP×1 2HP×1
Stroke travel 100mm 100mm
Number of spindle 8 16
Oscillation  stroke 0-100mm 0-100mm
Max.boring diameter Ø13mm Ø13mm
Table size 300×1200mm 350×1800mm
Table elevation motor 1/2HP 1/2HP
Cylinder clamp 4 5
Hydraulic pressure 30kg/cm² 30kg/cm²
Packing size(Pallet)mm 2400×1200×1650 3035×1150×1750
Net weight 1250kg 1800kg
Gross weight 1310kg 1900kg
