MULTIPLE SPINDLE 4-SIDE MOULDERS

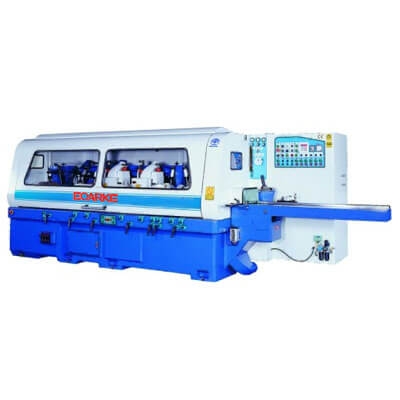

PC-C623 Multiple Spindle 4-Side Moulders Planer / Sander

PC-C623 Multiple Spindle 4-Side Moulders Planer / Sander

PC-C623 Multiple Spindle 4-Side Moulders Planer / Sander
PC-C623
Product Description
proimages/pro/Woodworking_Machine/C623a.jpg
proimages/pro/Woodworking_Machine/C621b.jpg

Unique design roller under every upper spindle to offer smooth feeding of workpiece.

proimages/pro/Woodworking_Machine/C621c.jpg

Specially designed feeding mechanism with auxiliary pressure wheels to offer machining for extra short workpiece.

proimages/pro/Woodworking_Machine/C621e.jpg

The first bottom horizontal spindle is equipped with trimming cutter for trimming the side of workpiece to achieve perfect straightness.

Inquiry
FEATURES:
MODELPC-C623
Min.working width 18mm
Min.working thickness 6mm
Min.working lengh 240mm
Max.working width 125mm
Max.working width Up to 230mm
1st &2nd motor 7.5HP
Motor 10HP
Feed motor 7.5HP
Elevation motor 1HP
Spindle diameter Ø40~optionalØ50mm
Spindle cutting speed 6200-7200R.P.M
　 100-125mm
　 110-180mm
Dust outiet diameter 5Inch
N.W. 4000kgs
G.W. 4600kgs
Packing size 147*79*83Inch
Moulding spindle number 6
