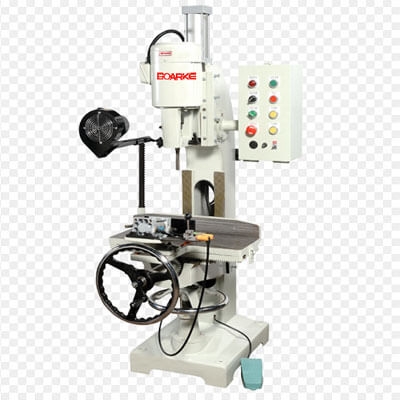

PC-F: Tenoner Machine | Pneumatic Hollow Chisel Mortiser

MODEL NO.	PC-F602
Chisel Range	1/4" to 3/4"
Table	16-3/4"×21-1/4"
Table Cross Traverse	5"
Table Longitudinal Traverse	18"
Table Vertical Traverse	12"
Head Drive	Pneumatic
Clamp Drive	Pneumatic
Chuck Capacity	1-1/8"
Spindle Speed	3400RPM
Maximum Stock Width	10"
Maximum Mortising Depth	4"
Head Motor	1HP／2HP
New Weight	260kg
Gross Weight	330kg
Packing Dimension（L×W×H）	88 × 96 × 178 cm

PNEUMATIC HOLLOW CHISEL MORTISER
