ROUND END TENONER MACHINE

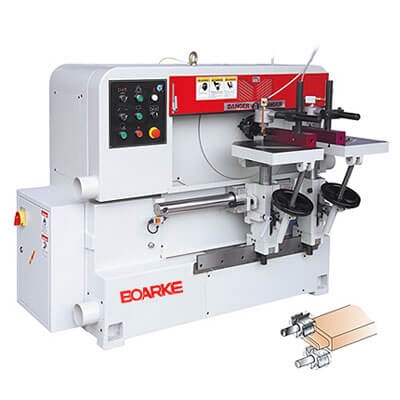

PC-F021 Round End Tenoner Machine

PC-F021 Round End Tenoner Machine

PC-F021 Round End Tenoner Machine
PC-F021
Product Description

Convenient Setup Of Tenon Direction

Three tenon directions at horizontal, vertical and 45° can be fast changed by turning the positioning disk.

A mechanical meter is provided for high accuracy adjustment of tenon sizes.

24T Helical Cutterhead (optional)

1. Excellent for all soft and hard wood materials.

2. 360º cutting.

3. Fine chips.

4. No tearing.

5. Forced chip removing to eliminate repeated cutting.

6. Low noise, long service life, insert life up to 120 days.

7. 5 years warranty.

Cutterhead Structure (Standard)

1. Suitable for medium hardness wood materials.

2. Production rate 12 pcs per minute.

3. Tearing may occur when applying for high hardness wood materials.

4. Sharpening frequency is 6-7 days of operation.

Inquiry
FEATURES:
  • Built with two tables for higher efficiency operations.
  • High production rate up to 12 pcs per minute.
  • Pneumatically operated table longitudinal traverse.
  • Adjustable tenoning width.
  • The tenon without removing the door, depth can be conveniently adjusted.
  • Table tilts 20°.
  • Movable table to save time, and speed can be variable adjustment.
  • Convenient setup of tenon directions at horizontal, vertical and 45°.
  • Miter gauge provided on the table allows for cutting bevel tenons.
  • Oil bushings on the table support and the disk.
  • Centralized control panel provides convenient operations.
  • Designed for producing various types of tenon.
  • Variable table feed speed suits various types of wood material.
ModelPC-F021
Spindle speed 6000 R.P.M.
Maximum tenon width 115+2R mm
with standard tool 10~45 mm
with special tools 8~90 mm
production rate 12 pcs/min.
upward 0~15°
downward 0~30°
Side ±10°
Spindle motor 5HP
Cutter cycle motor 1HP
Total horsepower 4.5 kw (6 HP)
Dust hood outlet diameter Ø4" x 3
Working air pressure 6 kg/cm²
Machine dimensions 1760x1150x1320 mm
Packing dimensions 1870x1220x1560 mm
Net weight 1100 kgs
Gross weight 1200 kgs
