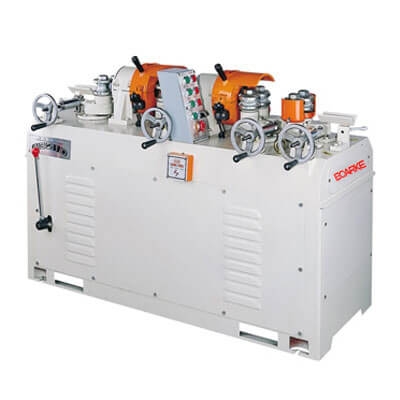

PC-E421
Product Description
proimages/pro/Woodworking_Machine/E421a.jpg
proimages/pro/Woodworking_Machine/E401b.jpg
proimages/pro/Woodworking_Machine/E401b1.jpg

Equipped with a micro switch for safety protection once safety guard is opened. (Optional)

FEATURES:
  • Designed for cutting stick from square into round rod, cutting stick up to 60mm in diameter.
  • Better than a single head machine, the Wood Round Rod Milling Machine - PC-E421 twin head machine offers smoother surface and saves finish time.
  • Built with 2 cutterheads, provides coarse and finish cutting sequence in one pass.
  • Excellent for making round rod as material like wood, rattan, acrylic and similar material.
  • 4 cutting feed speeds to suit the various materials.
  • Maximum safety is guaranteed by such features as feed rolls guard, fully enclosed transmission parts.
  • Magnetic switch control.
MODELPC-E421
Range of working diameter Ø6 to Ø60mm
Range of working length 400mm~Unlimited
Drive motor 7.5HP / 5HP
Feed motor 2HP
Cutterhead speed 6000 R.P.M
Range of feed speed 14/16/18/20 mater/min(4 speeds)
Chip chute diameter Ø100/mm(Ø4")
Machine size (L x W x H) 1360x690x910mm
Machine size (L x W x H) 1470x750x1150mm
Net weight 560kg
Gross weight 650kg
