Single Head Horizontal Band Resaw

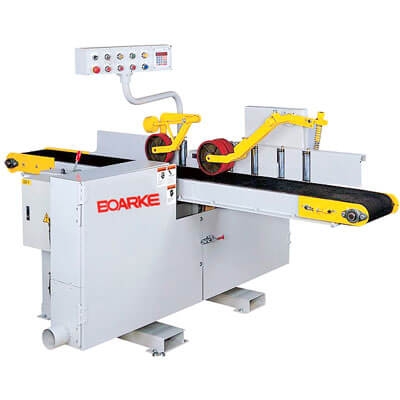

PC-A931 Single Head Horizontal Band Resaw

PC-A931 Single Head Horizontal Band Resaw

PC-A931 Single Head Horizontal Band Resaw
PC-A931
Product Description

proimages/pro/Woodworking_Machine/A931a.jpg

Hydraulic motor for conveyor drive

The feeding speed can be adjusted for different wood hardness.


proimages/pro/Woodworking_Machine/A931b.jpg

Saw wheel elevation motor

The upper and bottom saw wheel elevation have individual motors to drive, it’s convenient to adjust the cutting thickness


proimages/pro/Woodworking_Machine/A931c.jpg

Height and position of steel pressure roller could be easily adjusted.



Inquiry
FEATURES:
  • Single saw head configuration.
  • Motor powered set works for accurate saw wheel elevation.
  • Digital position controller permits accurate saw wheel height positioning.
  • Automatic blade tension is controlled by hydraulic cylinder.
  • Variable feed speed by hydraulic motor drive.
  • Simple steel pressure roller with spring holds wood firmly.
MODELPC-A931
Max workpiece size (W x H) 300 x 250 mm (12"x10")
Distance from blade to conveyor table 3-125 mm
Conveyor belt size 285 x 5480 mm (11-1/5"x215 3/4")
Saw wheel diameter Ø28" x 1"(W)
Feed speed 5 to 25 M/min
Saw blade size (L x W x T) 4265 x 27x 0.90mm (168" x 1")
Saw wheel motor 20 HP
Hydraulic system motor 3 HP
Gear box motor 1/4 HP
Dust hood diameter Ø 4" x 3
Net weight 1000 kgs
Packing       Frame 2180 x 1140 x 1140 mm
dimensions    Conveyor 2870 x 600 x 600 mm
Optional Inverter
