PC-D: Wood Borer | Six-Unit Boring Machine (Auto Through Feed)

MODEL	PC-D334
Max. distance between center	32mm
Number of horizontal boring head spindles per head	21 x 2
Number of vertical boring head spindles per head	(11 x 2) x 4
Power of motors	2.5HP x 10
Min. distance Vertical heads	150mm
Max. distance Vertical heads	2400mm
Spindle speed	2800rpm(50Hz)/3300rpm(60Hz)
Pneumatic backstop	2
Adjustment boring depth	0-65mm
N.W./G.W.	2400kgs/2600kgs
PACKING SIZE	3810 x 1940 x 1850mm

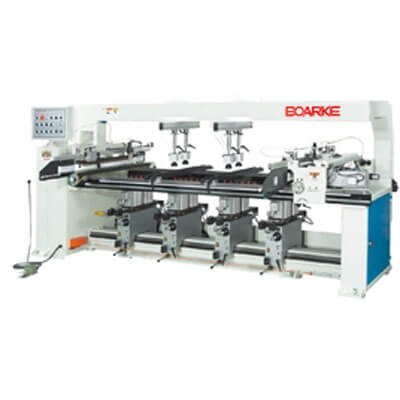

SIX-UNIT BORING MACHINE (AUTO.THROUGH FEED)
