SPINDLE SHAPER

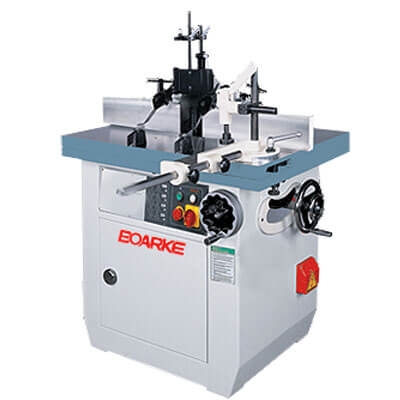

PC-H006 Spindle Shaper

PC-H006 Spindle Shaper

PC-H006 Spindle Shaper
PC-H006
Inquiry
FEATURES:
MODELPC-H006
Spindle Dia. 3/4", 1", 1-1/4" (19mm, 25.4mm, 30mm)
Spindle Speed 3000 / 4500 / 7500 / 10000 rpm.
Taper of Spindle MK5
SPindle Motor 5 HP (7.5 HP opt.)
Spindle Travel 5" (130mm)
Tilting Angle -5°~90°~+45°
Max. Table Insert Diameter 8-5/8" (220mm)
Table Size 700 x 900mm (27-1/2" x 35-1/2")
Table Height 35-1/2" (900mm)
Sliding Table Size 900 x 230mm (35-1/2" x 9")
Sliding Table Travel 38" (970mm)
Fence Size 4-15/16" x 35-1/2" (125 x 900mm)
Net weight 744 lbs(338kgs)
Gross weight 915 lbs(416kgs)
Packing size 42"(L) x 42"(W) x 50"(H)
