PC-H: Spindle Shaper Making Machine

SPINDLE SHAPER

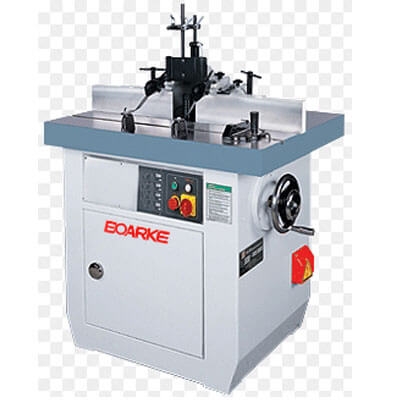

PC-H008 Spindle Shaping Machine

PC-H008 Spindle Shaping Machine

PC-H008 Spindle Shaping Machine
PC-H008
Inquiry
FEATURES:
MODELPC-H008
Spindle Dia. 3/4", 1", 1-1/4" (19mm, 25.4mm, 30mm)
Spindle Speed 3000 / 4500 / 7500 / 10000 rpm.
Taper of Spindle MK5
Sindle Motor 5 HP (7.5 HP opt.)
Spindle Travel 130mm (5")
Tilting Angle —
Max. Table Insert Diameter 220mm (8-5/8")
Table Size 700 x 900mm (27-1/2" x 35-1/2")
Table Height 900mm (35-1/2")
Sliding Table Size 900 x 230mm (35-1/2" x 9")
Sliding Table Travel 830mm (32-1/2")
Fence Size 125 x 900mm (4-15/16" x 35-1/2")
Net weight 695 lbs(316kgs) 744 lbs(338kgs)
Gross weight 854 lbs(388kgs) 915 lbs(416kgs)
Packing size 42"(L) x 38"(W) x 50"(H)
