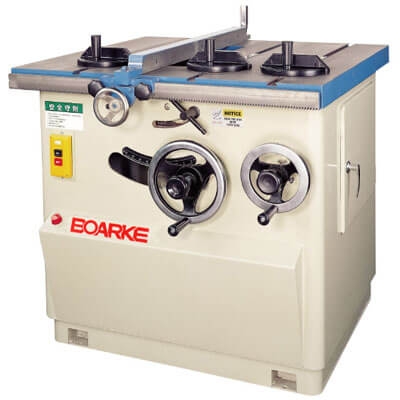

PC-B005 Tilting Arbor Table Saw

MODEL	PC-B005
Table size	860 x 780 mm
Diameter of arbor	Ø25.4 mm
Diameter of SAW BLADE(OPTIONAL)	355mm
Max. depth of cut at 90。	100 mm
Max. depth of cut at 45。	80mm
BLADE TILT	45°
Saw Blade speed	4000 R.P.M.
Motor	3HP (5HP, 7.5HP optional)
Machine size	910x860x810mm
Packing size	1020x1000x1040mm
N.W./G.W.	400kgs/450kgs
