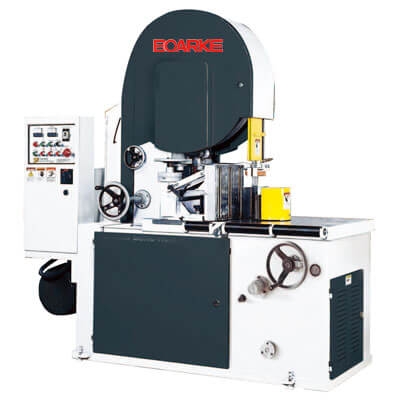

PC-A700
Product Description

◎ Powered feed roller combined with automatic clamping and unclamping of work-piece for operational convenience.

◎ Feed speed is variable.

◎ Rollers on both in-feed and out-feed end of table gives convenient resawing operation.

proimages/pro/Woodworking_Machine/PC-A700a.jpg

◎ Easy to install, which requires no further construction job.

◎ The heavy duty saw wheel is dynamically balanced for smooth running.

◎ Saw wheels run on precision bearing.
proimages/pro/Woodworking_Machine/PC-A700b.jpg

◎ Fence setting is fast and convenient to make.

◎ The entire fence assembly is ruggedly constructed featuring high rigidity and durability.


◎ Blade tension can be accurately read from the rule gauge.

proimages/pro/Woodworking_Machine/PC-A700d.jpg

◎ Automatic lubricator provides lubrication and cooling for the sawblade. It also reduces considerable noise level.
proimages/pro/Woodworking_Machine/PC-A700e.jpg

FEATURES:
  • Bakelite saw guide ensures high wear-resistance.
  • Upper and lower wheels are manufactured from cast iron, dynamically balanced for extremely smooth running performance.
  • Bronze piece is provided for wheel cleaning.
MODELPC-A700PC-A701
MINIMUM THICKNESS OF CUT 3mm 3mm
DISTANCE FROM FENCE TO BLADE 185mm 230mm
DISTANCE FROM FRRD ROLLER TO BLADE 190mm 300mm
TABLE HEIGHT FROM FLOOR 835mm 975mm
WHEEL DIAMETER 710mm 915mm
WHEEL WIDTH 90mm 90mm
WIDTH OF BLADE 100mm 100mm
LENGTH OF BLADE 4850mm 5760mm
FEED OF BLADE VARIABLE VARIABLE
WHEEL DRIVE MOTOR 20HP 30HP
HYDRAULIC PUMP MOTOR NO NO
N.W. 1500kgs 2700kgs
G.W. 1700kgs 2900kgs
PACKING DIMENSIONS 228x138x225cm 262x142x255cm
