PC-D: Woodworking Drilling Machine

VERTICAL BORING MACHINE

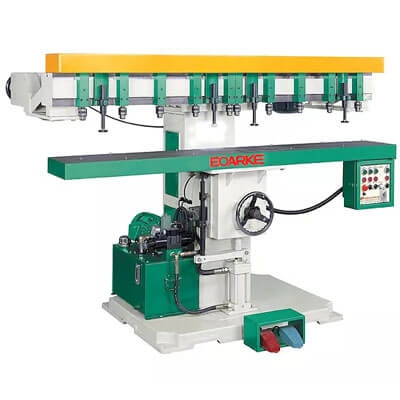

PC-D101 Vertical Boring Machine

PC-D101 Vertical Boring Machine

PC-D101 Vertical Boring Machine
PC-D101
Inquiry
FEATURES:
  • The machine base is manufactured from high quality cast iron. (FC 25-30)
  • A hydraulically operated model.
  • Distance between spindles is adjustable.
  • The machine is also suitable for drilling steel pipe and aluminum furniture parts.
MODELPC-D101PC-D102
Spindle motor 2HP×1 2HP×2
Spindle speed 50HZ-3700R.P.M. 60HZ-4200R.P.M. 50HZ-3700R.P.M. 60HZ-4200R.P.M.
Number of spindle 6 10
Number of idler-wheel 6 10
Hold down clamp 3 4
Table area 300×1200 300×1800
Hydraulic pump motor 2HP 2HP
Min. distance between drills 50mm 50mm
Machine size 1280×1200×1600mm 1880×1200×1600mm
Packing size 1380×1300×1900mm 1380×1300×1900mm
Net weight 1030kg 1135kg
Gross weight 1180kg 1335kg
